Frontend Overview

The frontend is a Single Page Application (SPA) built with Vue 3 and Quasar Framework. This overview provides setup instructions, implementation details, and references to system-wide architecture documentation.

For system architecture and technology decisions, see:

Quick Start

Prerequisites

  • Node.js 18+ (LTS recommended)
  • npm, yarn, or pnpm package manager
  • Modern web browser (Chrome, Firefox, Safari, Edge)

Installation

# Clone repository (if not already done)
git clone https://github.com/EPFL-ENAC/co2-calculator.git
cd co2-calculator/frontend

# Install dependencies
npm install
# or
yarn install

# Copy environment file
cp .env.example .env
# Edit .env with your backend API URL

Development Server

# Start development server with hot reload
npm run dev
# or
quasar dev

# Application will be available at http://localhost:5173

Build for Production

# Build production bundle
npm run build
# or
quasar build

# Output in dist/spa/ directory

Project Structure

frontend/
├── src/
│   ├── assets/          # Static assets (images, fonts)
│   ├── components/      # Reusable Vue components
│   ├── composables/     # Vue composition functions
│   ├── layouts/         # Layout components (header, footer, sidebar)
│   ├── pages/           # Route page components
│   ├── router/          # Vue Router configuration
│   ├── stores/          # Pinia state management stores
│   ├── i18n/            # Internationalization (i18n) translations
│   ├── boot/            # Quasar boot files (plugins, etc.)
│   ├── css/             # Global styles, SCSS tokens
│   ├── App.vue          # Root application component
│   └── main.ts          # Application entry point
├── public/              # Static public files
├── index.html           # HTML template
├── quasar.config.js     # Quasar framework configuration
├── package.json         # Dependencies and scripts
└── tsconfig.json        # TypeScript configuration

Key Directories

  • components/: Organized by feature (labs/, reports/, admin/, shared/)
  • pages/: One component per route (LabsPage.vue, DashboardPage.vue)
  • stores/: Pinia stores for state management (authStore, labsStore)
  • router/: Route definitions with guards for authentication
  • i18n/: Language files (en.json, fr.json, de.json)

Architecture Patterns

Component Hierarchy

App.vue
└── MainLayout.vue
    ├── HeaderNav.vue
    ├── SidebarMenu.vue
    └── <router-view> (page components)
        ├── LabsPage.vue
        │   └── LabCard.vue
        ├── LabDetailPage.vue
        │   ├── LabOverview.vue
        │   ├── DataImportPanel.vue
        │   └── ResultsChart.vue
        └── AdminPage.vue

Pattern: Presentational components (UI) + Container components (logic)

State Management (Pinia)

// stores/labsStore.ts
export const useLabsStore = defineStore("labs", {
  state: () => ({
    labs: [],
    currentLab: null,
    loading: false,
  }),
  actions: {
    async fetchLabs() {
      /* API call */
    },
    async createLab(data) {
      /* API call */
    },
  },
  getters: {
    labsByDate: (state) => state.labs.sort(/*...*/),
  },
});

Stores: authStore, labsStore, importsStore, reportsStore, adminStore

Routing

// router/routes.ts
const routes = [
  {
    path: "/",
    component: MainLayout,
    meta: { requiresAuth: true },
    children: [
      { path: "labs", component: LabsPage },
      { path: "labs/:id", component: LabDetailPage },
      { path: "reports", component: ReportsPage },
      { path: "admin", component: AdminPage, meta: { requiresRole: "admin" } },
    ],
  },
];

Route Guards: Authentication and role-based access control implemented in router/index.ts

Development Workflow

Running Development Server

# Start with hot module replacement
npm run dev

# Start with specific port
quasar dev --port 8080

# Start with HTTPS (for OIDC testing)
quasar dev --https

Code Quality

# Lint code (ESLint)
npm run lint

# Format code (Prettier)
npm run format

# Type checking (TypeScript)
npm run type-check

Testing

# Run unit tests (Vitest): NOT IMPLEMENTED
npm run test:unit

# Run component tests (Playwright)
npm run test-ct

# Run E2E tests (Playwright)
npm run test:e2e

# Generate coverage report: NOT IMPLEMENTED
npm run test:coverage

Configuration

Environment Variables

Create .env file in frontend/ directory:

# Backend API
VITE_API_BASE_URL=http://localhost:8000/api/v1

# Feature Flags
VITE_ENABLE_ANALYTICS=false
VITE_ENABLE_DEBUG_PANEL=true

Note: VITE_ prefix is required for Vite to expose variables to the client.

Quasar Configuration

Edit quasar.config.js for:

  • Build options (target browsers, bundle splitting)
  • Quasar plugins (Notify, Dialog, Loading)
  • Dev server proxy (API calls to backend)
  • CSS preprocessor options

Authentication & Authorization

Authentication Flow

  1. User clicks "Login" → Redirect to Microsoft Entra ID (OIDC)
  2. User authenticates with EPFL credentials
  3. Redirect back to /auth/callback with authorization code
  4. Frontend exchanges code for JWT token
  5. Store token in memory (authStore) + localStorage (refresh token)
  6. Include token in all API requests: Authorization: Bearer <token>

Implementation: oidc-client-ts library in boot/oidc.ts

Detailed Flow: See Auth Flow Across Layers

Route Protection

// router/index.ts
router.beforeEach((to, from, next) => {
  const authStore = useAuthStore();

  if (to.meta.requiresAuth && !authStore.isAuthenticated) {
    next({ name: "Login" });
  } else if (to.meta.requiresRole && !authStore.hasRole(to.meta.requiresRole)) {
    next({ name: "Forbidden" });
  } else {
    next();
  }
});

Internationalization (i18n)

Language Support

  • English (en) - Default
  • French (fr) - Primary for EPFL users
  • German (de) - Additional support

Translation Files

src/i18n/
├── en.json
├── fr.json
└── de.json

Contributing translation

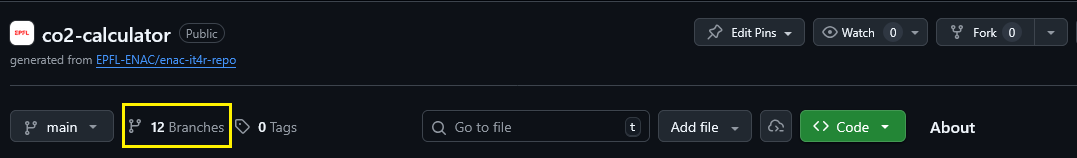

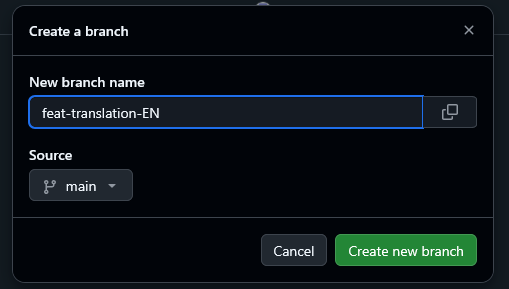

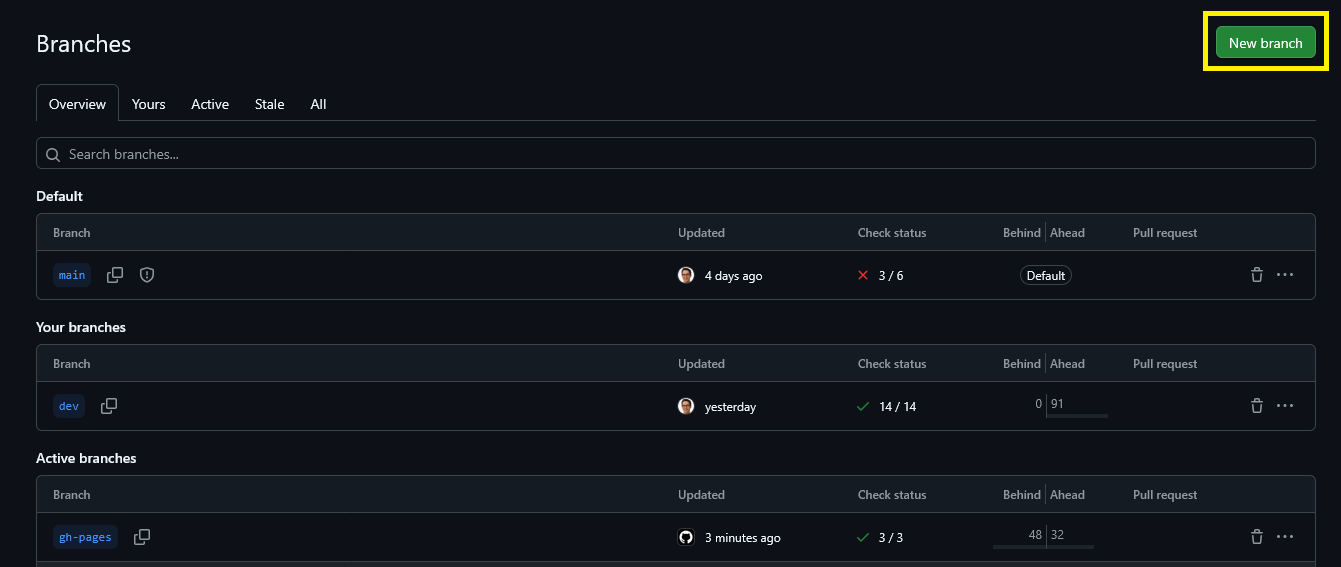

  1. Create a feature branch from main Screenshot Screenshot Screenshot

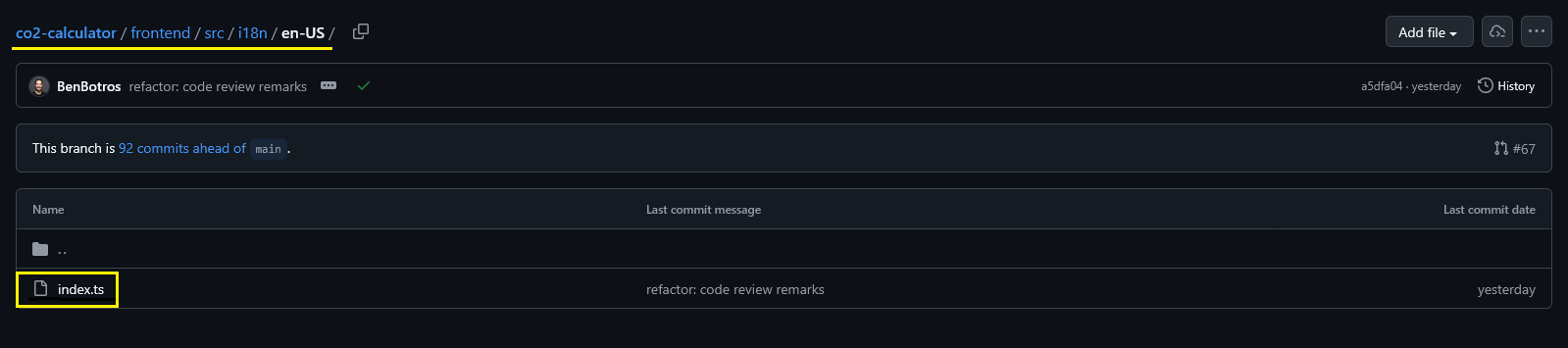

  2. Make your changes to the translation files Screenshot

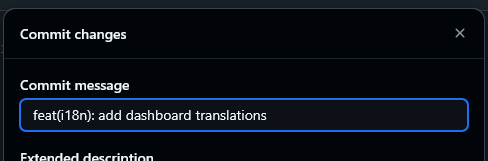

  3. Commit with a conventional commit message (e.g., feat(i18n): add dashboard translations) Screenshot Screenshot

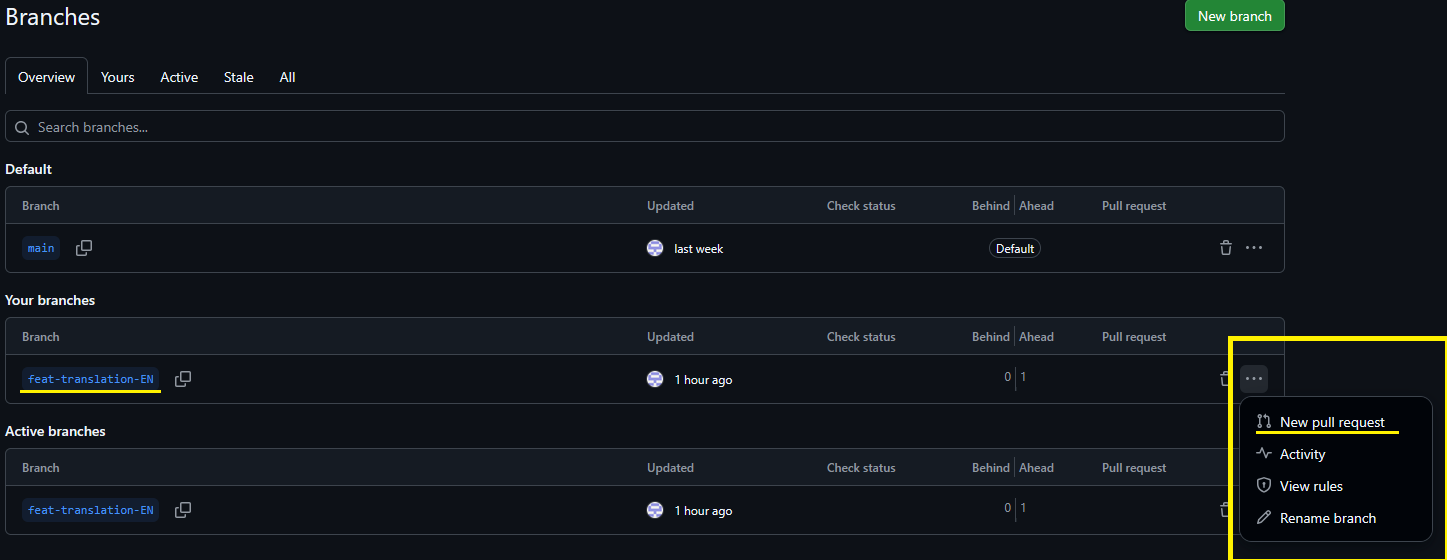

  4. Push your branch and open a pull request Screenshot

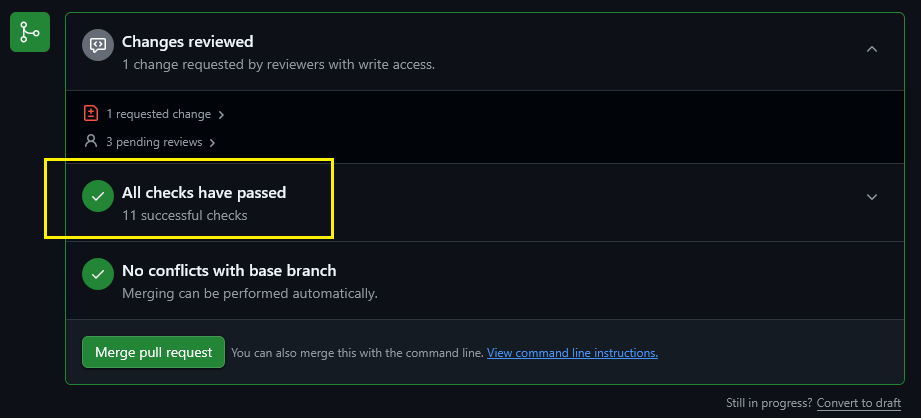

  5. Ensure CI checks pass Screenshot

Contributing translation

  1. Create a feature branch from main Screenshot Screenshot Screenshot

  2. Make your changes to the translation files Screenshot

  3. Commit with a conventional commit message (e.g., feat(i18n): add dashboard translations) Screenshot Screenshot

  4. Push your branch and open a pull request Screenshot

  5. Ensure CI checks pass Screenshot

Usage in Components

<template>
  <h1>{{ $t("labs.title") }}</h1>
  <p>{{ $t("labs.description", { count: labsCount }) }}</p>
</template>

<script setup>
import { useI18n } from "vue-i18n";

const { t, locale } = useI18n();

// Programmatic usage
const message = t("common.success");
locale.value = "fr"; // Switch language
</script>

Library: vue-i18n integration with Quasar

UI Component System

Quasar Components

Leverage Quasar's extensive component library:

  • Forms: QInput, QSelect, QDate, QFile
  • Data Display: QTable, QCard, QList, QTree
  • Navigation: QTabs, QDrawer, QBreadcrumbs
  • Feedback: QDialog, QNotify, QLoading, QTooltip

Documentation: Quasar Components

Custom Components

Organized by feature in components/:

components/
├── labs/
│   ├── LabCard.vue
│   ├── LabForm.vue
│   └── LabFilters.vue
├── reports/
│   ├── ReportChart.vue (eCharts integration)
│   └── ReportExport.vue
├── shared/
│   ├── LoadingSpinner.vue
│   ├── ErrorBoundary.vue
│   └── ConfirmDialog.vue
└── admin/
    ├── UserManagement.vue
    └── FactorEditor.vue

Styling

  • SCSS Tokens: Design system tokens in css/tokens/ (generated from Figma)
  • Global Styles: css/quasar.variables.scss (Quasar theme customization)
  • Component Styles: Scoped <style lang="scss" scoped>
  • Utility Classes: Quasar's responsive classes (.q-pa-md, .col-xs-12)

API Integration

HTTP Client

// boot/axios.ts
import axios from "axios";

const api = axios.create({
  baseURL: import.meta.env.VITE_API_BASE_URL,
  timeout: 10000,
});

// Request interceptor (add auth token)
api.interceptors.request.use((config) => {
  const authStore = useAuthStore();
  if (authStore.token) {
    config.headers.Authorization = `Bearer ${authStore.token}`;
  }
  return config;
});

// Response interceptor (handle errors)
api.interceptors.response.use(
  (response) => response,
  (error) => {
    if (error.response?.status === 401) {
      // Redirect to login
      authStore.logout();
    }
    return Promise.reject(error);
  },
);

API Service Layer

// services/labsService.ts
export const labsService = {
  async fetchLabs() {
    const { data } = await api.get("/labs");
    return data;
  },

  async createLab(labData) {
    const { data } = await api.post("/labs", labData);
    return data;
  },

  async importCSV(labId, file) {
    const formData = new FormData();
    formData.append("file", file);
    const { data } = await api.post(`/labs/${labId}/imports`, formData);
    return data;
  },
};

Pattern: Services abstract API calls from components/stores

Data Visualization

eCharts Integration

<template>
  <div ref="chartRef" style="width: 100%; height: 400px;"></div>
</template>

<script setup>
import { ref, onMounted, watch } from "vue";
import * as echarts from "echarts";

const chartRef = ref(null);
let chartInstance = null;

onMounted(() => {
  chartInstance = echarts.init(chartRef.value);
  updateChart();
});

const updateChart = () => {
  const option = {
    title: { text: "CO2 Emissions by Category" },
    xAxis: { type: "category", data: ["Travel", "Equipment", "Energy"] },
    yAxis: { type: "value" },
    series: [{ data: [120, 200, 150], type: "bar" }],
  };
  chartInstance.setOption(option);
};

watch(() => props.data, updateChart);
</script>

Charts: Bar charts, line charts, pie charts, treemaps for emissions breakdown

Performance Optimization

Code Splitting

// router/routes.ts
const routes = [
  {
    path: "/admin",
    component: () => import("pages/AdminPage.vue"), // Lazy load
  },
];

Bundle Optimization

// quasar.config.js
build: {
  vueRouterMode: 'history',
  vitePlugins: [
    ['vite-plugin-compression', { algorithm: 'gzip' }]
  ],
  rollupOptions: {
    output: {
      manualChunks: {
        'vendor-vue': ['vue', 'vue-router', 'pinia'],
        'vendor-quasar': ['quasar'],
        'vendor-charts': ['echarts']
      }
    }
  }
}

Image Optimization

  • Use WebP format for images
  • Lazy load images with v-lazy directive
  • Responsive images with <picture> element

See Scalability Strategy for system-wide performance.

Troubleshooting

Development Server Issues

# Clear node_modules and reinstall
rm -rf node_modules package-lock.json
npm install

# Clear Vite cache
rm -rf .quasar node_modules/.vite
npm run dev

OIDC Authentication Issues

  • Check redirect URI matches OIDC provider configuration
  • Verify client ID and tenant ID are correct
  • Ensure HTTPS is enabled for production (OIDC requirement)
  • Check browser console for CORS errors

API Connection Issues

// Check proxy configuration in quasar.config.js
devServer: {
  proxy: {
    '/api': {
      target: 'http://localhost:8000',
      changeOrigin: true
    }
  }
}

Build Errors

# Type check for errors
npm run type-check

# Check for ESLint errors
npm run lint

# Check Quasar configuration
quasar info

Production Deployment

Build Process

# Production build
npm run build

# Output: dist/spa/
# - index.html
# - assets/ (JS, CSS, images)

Nginx Configuration

server {
  listen 80;
  server_name co2calculator.epfl.ch;

  root /usr/share/nginx/html;
  index index.html;

  # SPA fallback
  location / {
    try_files $uri $uri/ /index.html;
  }

  # Cache static assets
  location /assets/ {
    expires 1y;
    add_header Cache-Control "public, immutable";
  }

  # Security headers
  add_header X-Frame-Options "SAMEORIGIN";
  add_header X-Content-Type-Options "nosniff";
  add_header X-XSS-Protection "1; mode=block";
}

Docker Build

# Multi-stage build
FROM node:18-alpine AS builder
WORKDIR /app
COPY package*.json ./
RUN npm ci
COPY . .
RUN npm run build

FROM nginx:alpine
COPY --from=builder /app/dist/spa /usr/share/nginx/html
COPY nginx.conf /etc/nginx/conf.d/default.conf
EXPOSE 80
CMD ["nginx", "-g", "daemon off;"]

For deployment architecture, see:

Additional Resources

Architecture Documentation

External Documentation

Last Updated: November 11, 2025
Readable in: ~10 minutes
